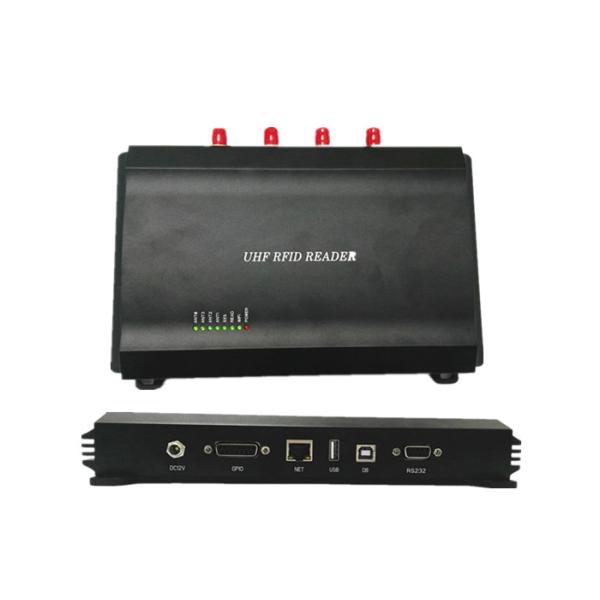

Four Ports UHF RFID Inventory Fixed Reader
* Designed with Impinj R2000 RFID engine
* Support ISO18000-6C (EPC C1G2) protocol tag
* 840~868MHz/902~928MHz frequency band (frequency customization optional)
* FHSS or Fix Frequency transmission
* RF output power up to 30dbm (adjustable)
* 4 TNC antenna port with antenna auto-tuning and failure-detection
* Support command, polling and trigger mode
* Tag buffer size up to 800PCS (Max. 496bits EPC length)
* Support EPC, TID and USER inventory
* Support RS232, RS485, RJ45 (TCPIP), WiFi and Bluetooth optional
* Support IAP firmware upgrading
* Support IE configuration
Technical parameters
| Name | Parameters | Remark |
| Reader Chip | R2000 | |
| Tag Protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C | |
| Working Frequency | 840～960MHz | |
| Supporting Working Area | China, Europe, the United States, South Korea, Japan, Taiwan…… | |
| Operating Voltage | 12V | DC power supply |
| Maximum operating current | 1A | Test of transmit power in 30dBm state |
| Standby current | ≤80mA | |
| RF port maximum output power | 1W(30dBm) | |
| Working Temperature | -25℃～+65℃ | |
| Working Humidity | ≤95%(+25℃) | |
| Storage Temperature | -40℃～+80℃ | |
| Receiving | -82dBm | |
| Antenna interface impedance | 50Ω | |
| Serial communication parameters | Baud rate adjustable(default 115200bps),parity bit:0 ,data bit:8 ,stop bit:1 | |
| Power output settings | 5～30dBm adjustable /Adjustable minimum interval of 1dBm(default 30dBm) | |
| DRM mode | support | |
| RSSI | support | |
| High temperature automatic protection function | support | |
| Power supply enable | support | |
| GPIO interface | 3-Road GPIO can only input can not be input,GPIO port default is
low, the output high level of 5V,GPIO 3 IS USDED TO CONTROL LED
state indicator(green) and buzzer | |
| buzzer | support | |
| LED lights | Power indicator: Red | |
| Communication Interface | USB,RS232,RS485,Ethernet | Only one of the communication interfaces on the F5860-H can be used alone. Do not communicate with each other at the same time. |
| Antenna interface | Four TNC | The F5860-H working antenna defaults to antenna 1.Antenna parameters can be configured: working antenna, working time, interval time. |
| dimension | 26.5*25.0*4.5CM(including bracket) | |
| Accessories | 12V/3A Power Adapter:1 |
PIN Green Terminal Interface Definition
| Pin NO. | Name | Description | Remark |
| 1 | 485-B | RS485 B | |
| 2 | 485-A | RS485 A | |
| 3 | EN_OUT | Equipment enable control interface,When the high level input, the device will be in a state of sleep.The high level voltage is 5V. | |
| 4 | GPIO1 | GPIO port output, can be programmed to control the level of output.The output high level is 5V, the low level is 0V.The maximum output current is 100mA. (The default output level is low level 0V) | |
| 5 | GPIO2 | the same as above | |
| 6 | GPIO3 | the same as above(note:Equipment has occupied this interface for the green LED lights and buzzer control) | |
| 7 | NC | Reserved interface, no function | |
| 8 | NC | Reserved interface, no function | |
| 9 | WIFI_RESET | Device WIFI configuration parameter reset pin,this pin and the GND pin short to 10 seconds to restore the factory settings WIFI. | |
| 10 | GND | Signal reference. |
