Fast UHF RFID Application Washable Laundry Tags Long Reading Distance
These tags are ideal for tracking linens, uniforms, and other
garments
You can use them to achieve good performance in different
applications:
1. Tracking management
2. Hospital uniforms
3. Dry cleaners
4. Linens/ Pallets/ Canvas bags
5. Launderers
6. Use in hotel sheet/ Attached to textile/ Work clothing
7. Factory/warehouse/hotel/hospital/amusement park
| |
| This Industrial RFID woven Laundry Tag is specially suitable for industrial washing environment. | |
| Specification | |
| Type | Contactless R/W |
| Operating Frequency | UHF (860MHz ~ 960MHz) Global Frequency |
| IC Available | H3,H4,U7(others depend on request) |
| Size | 60*25mm/ 75*25mm / 75*15mm |
| Reading Distance | Up to 3m~5m, depend on the chip/reader, size of tag and environment |
| Simultaneous Identification of Tags | Up to 100 tags per second |
| Operating Temperature | -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 Sec |
| Storage Temperature | -25ºC to 90ºC |
| Typical programming cycles at +25ºC | 100, 000 |
| Typical Data retention time at +55ºC | > 10 years |
| |
| 1.Waterproof IP 68 | |
| 2.Simultaneous Identification of Tags: Up to 100 tags per second | |
| 3.Reading Distance: Up to 3m~5m | |
| 4.Data retention time at +55ºC: > 10 year | |
| 5.100, 000 times reading & writing | |
| 6.Exceptional temperature and harsh environmental performan | |

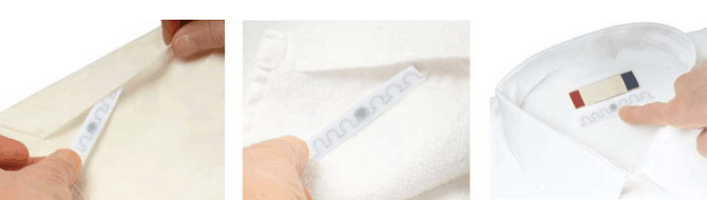

Products Image
1) Washable identification tag (transponder) for garment
application
2) Widely used in apparel items, garments, costumes, uniforms,
patients’ clothing in hospital
3) Robust design for harsh laundry environment
4) Good chemical resistance, withstand corrosive laundry agents
5) 100% water proof, wet-proof, quake-proof, and res
ist high temperature which is environmentally friendly and
unharmful to the human body
6) Can be used for Applied to clothes management, Security control,
Laundry shop(including industrial gradelaundry) or some odious
environment
7) Chip is customized according your system
|
|
