uhf rfid module with 9200 sensor and 840-960MHZ for desktop reader
Main performance parameters
| Category | Specification parameter | Remarks |
| Name | M2100_V3 | |
| Air interface protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C | |
| working frequency | 840～960MHz | |
| Support area | China, Japan, Europe, the United States, South Korea, Taiwan …… | |
| working voltage | DC5V | |
| Maximum working current | 500mA | In the case of 25dBm output power |
| Standby current | 30mA | |
| Dormant current | 100uA | |
| RF port maximum output power | 25dBm | It Can be adjusted directly from 5dBm to 25dBm |
| Maximum read distance of label | ＞2meters (2dBi ceramic antenna ) | The actual distance is related to the label and environment |
| working temperature | -20℃～+70℃ | |
| Working humidity | ≤95%(+25℃) | |
| Storage temperature | 0℃～+90℃ | |
| Maximum receiving sensitivity | -60dBm | |
| Antenna interface impedance | 50Ω | |
| Serial communication parameters | Baud rate adjustable (default 115200bps), parity bit: No, data bit: 8 bit, stop bit: 1 bit | |
| Antenna interface | MMCX | Gold plated brass |
| PCB material | FR4 | |
| PCB surface treatment | Gold-plated | |
| PCB color | Blue + Black | |
| Shield material | Yang paktong | |
Heat dissipation mode | Natural cooling of air | |
2:M2100_V3 Interface definition and shape size

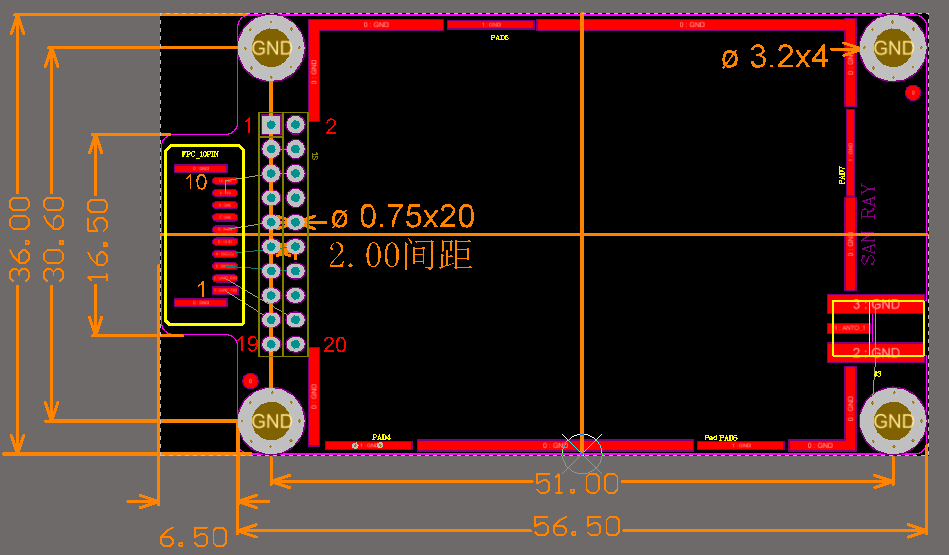

Figure 1 : M2100_V3 interface order and shape size (unit: MM)
The default interface adopts 2 20 pin dual row spacing, defined as
follows:
| 20 pipe feet | Name | Description |
| 1 | GND | Power negative input |
| 2 | GND | Power negative input |
| 3 | +5V | 5V power positive input |
| 4 | +5V | 5V power positive input |
| 5 | +5V | 5V power positive input |
| 6 | +5V | 5V power positive input |
| 7 | GND | land |
| 8 | GND | land |
| 9 | P-EN | Power control terminal (input high level, module running normally, input low level, cut off power) |
| 10 | GND | land |
| 11 | GND | land |
| 12 | DIO | Module programming data interface (internal use) |
| 13 | GND | land |
| 14 | CLK | Modular programming clock interface (internal use) |
| 15 | GND | land |
| 16 | GND | land |
| 17 | UART TX | Serial interface transmission, TTL level, low level of 0V, high level of 3.3V |
| 18 | UART RX | Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V |
| 19 | GND | land |
| 20 | GND | land |
The FPC_10PIN connector position is reserved for 1.0MM, up type and
defined as follows :
| 10 pipe feet | Name | Description | Remarks |
| 1 | UART TX | Serial interface transmission, TTL level, low level of 0V, high level of 3.3V | |
| 2 | UART RX | Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V | |
| 3 | GPIO3 | The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) | Programmable use |
| 4 | GPIO2 | The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) | Programmable use |
| 5 | GPIO1 | The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) | Internal use |
| 6 | P-EN | Power control terminal (input high level, module running normally, input low level, cut off power) | Low power application |
| 7 | GND | Power negative input | |
| 8 | GND | Power negative input | |
| 9 | +5V | 5V power positive input | |
| 10 | +5V | 5V power positive input |

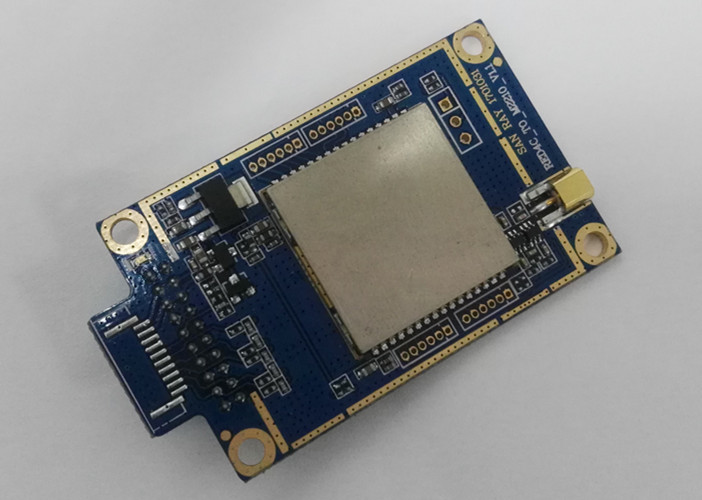

3: M2100_V3 Module physical picture
Figure 3:M2100_V3 physical map
4,Channel frequency examples
5.1 china frequency
| Channel | Frequency | channel | Frequency |
| 1 | 920.125 MHz | 11 | 922.625 MHz |
| 2 | 920.375 MHz | 12 | 922.875 MHz |
| 3 | 920.625 MHz | 13 | 923.125 MHz |
| 4 | 920.875 MHz | 14 | 923.375 MHz |
| 5 | 921.125 MHz | 15 | 923.625 MHz |
| 6 | 921.375 MHz | 16 | 923.875 MHz |
| 7 | 921.625 MHz | 17 | 924.125 MHz |
| 8 | 921.875 MHz | 18 | 924.375 MHz |
| 9 | 922.125 MHz | 19 | 924.625 MHz |
| 10 | 922.375 MHz | 20 | 924.875 MHz |
Note: other regional frequencies please refer to the regional
regulations
